Components
The dashboard components, and how to compose them.
<WorkflowRunsDashboard/>
The whole dashboard in one component: live toggle, status counts, filters, runs table, pagination, and run detail. It creates its own React Query client and provider.
import { WorkflowRunsDashboard } from '@pg-workflows/ui'
export default function Page() {
return <WorkflowRunsDashboard baseUrl="/workflow-runs" />
}The components below are the pieces of the dashboard. They need a WorkflowRunsProvider above them. Each snippet is an excerpt from the full page in Compose the components.

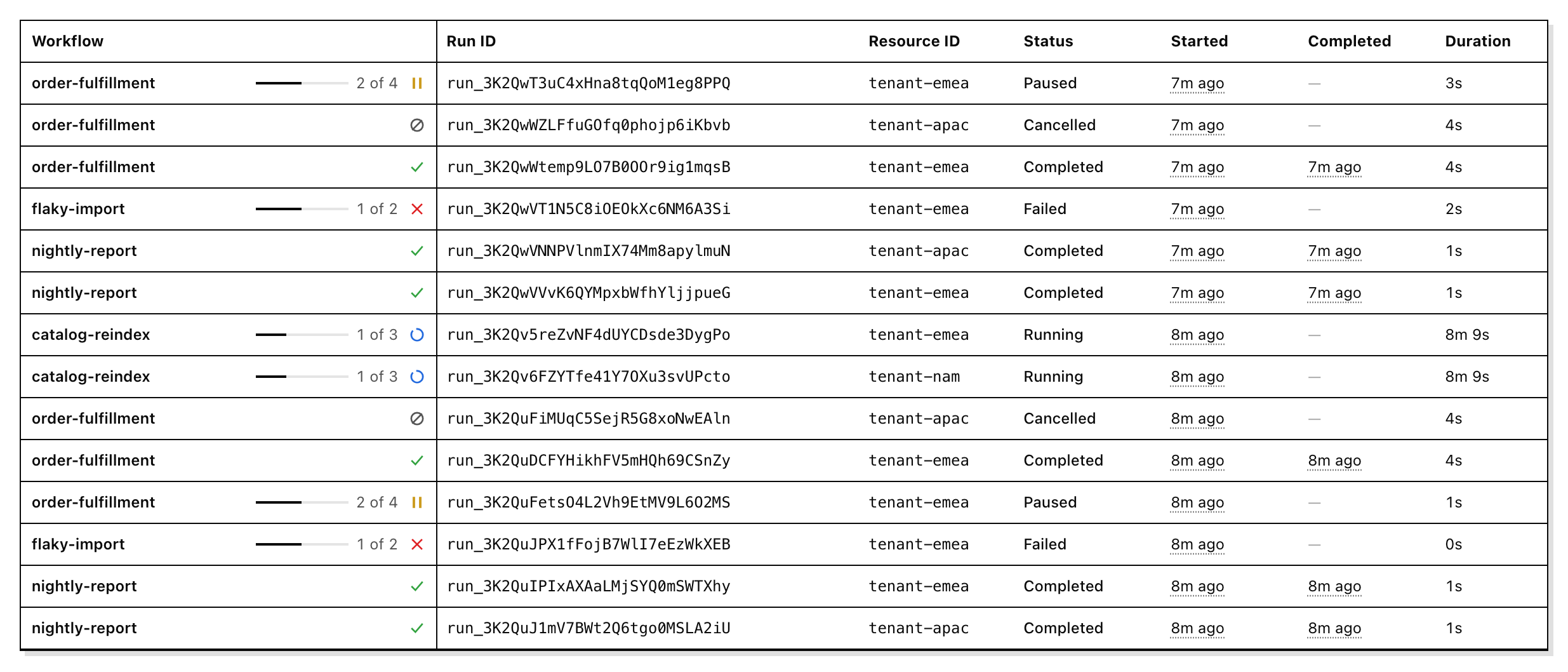

<RunsTable/>
The list of runs, with step progress, IDs, status, timestamps, and duration.
<RunsTable
runs={rows}
isLoading={runs.isLoading}
selectedRunId={runId}
onSelectRun={setRunId}

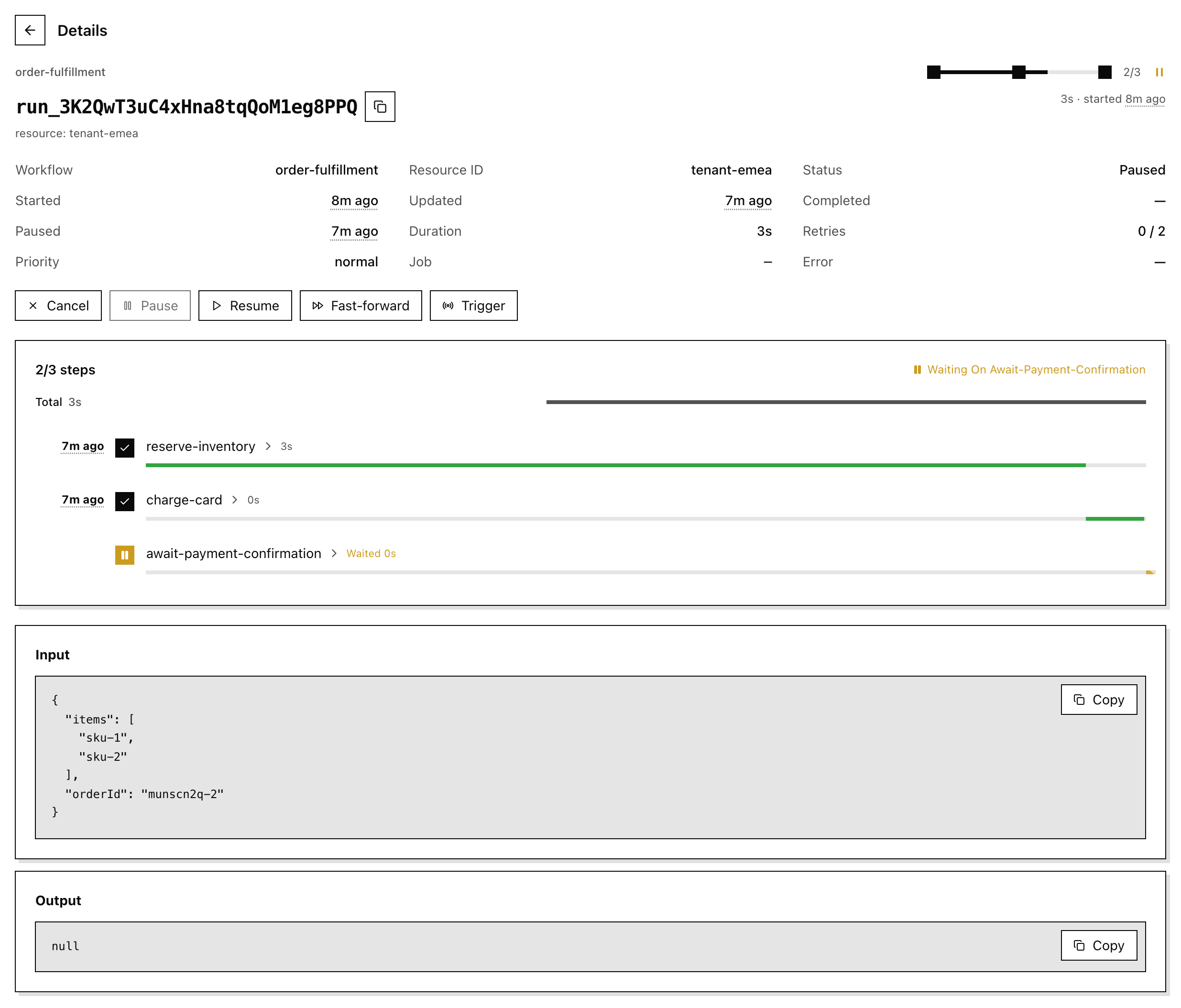

/><RunDetail/>
One run: header, details, lifecycle actions, step timeline, and input and output. It loads the run and calls the actions itself.

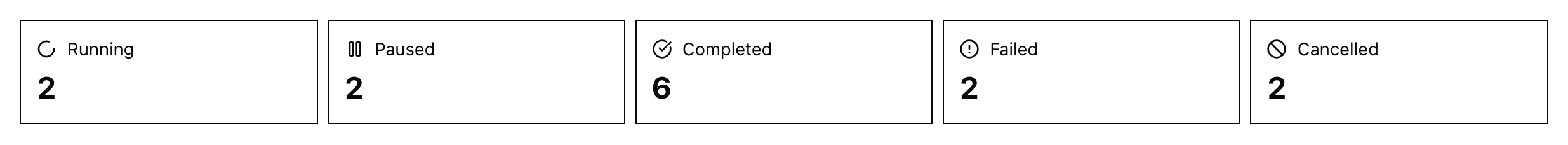

<RunDetail runId={runId} onBack={() => setRunId(null)} /><StatusSummary/>
A count per status. Click a count to filter by that status.
<StatusSummary
counts={stats.data ?? {}}
onSelectStatus={(status) => filter({ statuses: [status] })}

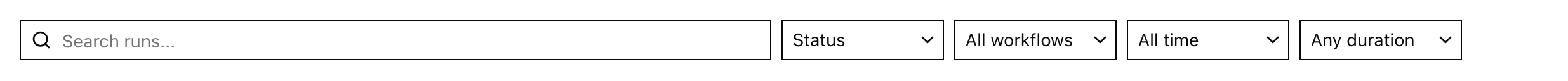

/><FilterBar/>
Search, plus status, workflow, date, and duration filters.
<FilterBar
filters={filters}
hasActiveFilters={hasActiveFilters}
workflowIds={['nightly-report', 'order-fulfillment']}
onFiltersChange={filter}
onClear={clearFilters}

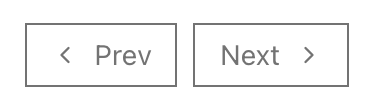

/><Pagination/>
Previous and next controls for the cursor-paginated list.
<Pagination
hasPrev={!!runs.data?.hasPrev}
hasNext={!!runs.data?.hasMore}
isFetching={runs.isFetching}
onPrev={() =>
setFilters({ endingBefore: runs.data?.prevCursor ?? undefined, startingAfter: undefined })
}
onNext={() =>
setFilters({ startingAfter: runs.data?.nextCursor ?? undefined, endingBefore: undefined })
}
/><LiveToggle/>
A Live / Paused switch for polling. You own the state and pass the matching interval to the provider.

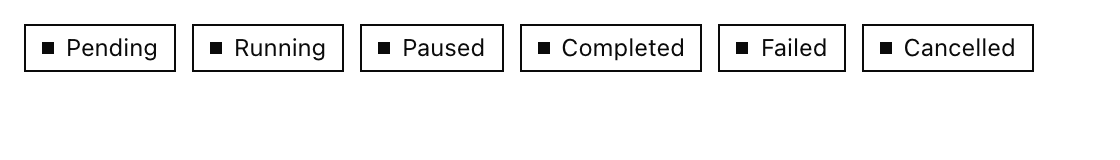

<LiveToggle isLive={live} isFetching={runs.isFetching} onToggle={onToggleLive} /><StatusBadge/>
A status label.
<StatusBadge status={run.status} />Compose the components
The same wiring <WorkflowRunsDashboard/> uses, as one client component. Filter changes reset the page cursor, and the client-side filters (search, date, duration) and sort are applied to the current page before rendering.
'use client'
import {
applyClientFilters,
createFetchClient,
FilterBar,
LiveToggle,
Pagination,
RunDetail,
type RunFilters,
RunsTable,
StatusSummary,
sortRuns,
useRunFilters,
useWorkflowRunStats,
useWorkflowRuns,
WorkflowRunsProvider,
} from '@pg-workflows/ui'
import { QueryClient, QueryClientProvider } from '@tanstack/react-query'
import { useState } from 'react'
const client = createFetchClient({ baseUrl: '/workflow-runs' })
export function RunsPage() {
const [queryClient] = useState(() => new QueryClient())
const [live, setLive] = useState(true)
return (
<QueryClientProvider client={queryClient}>
<WorkflowRunsProvider client={client} pollIntervalMs={live ? 5000 : 0}>
<div className="pgw-root flex flex-col gap-5">
<Runs live={live} onToggleLive={() => setLive((v) => !v)} />
</div>
</WorkflowRunsProvider>
</QueryClientProvider>
)
}
function Runs({ live, onToggleLive }: { live: boolean; onToggleLive: () => void }) {
const { filters, setFilters, clearFilters, hasActiveFilters, serverParams } = useRunFilters()
const runs = useWorkflowRuns(serverParams)
const stats = useWorkflowRunStats({ workflowId: filters.workflowId })
const [runId, setRunId] = useState<string | null>(null)
const filter = (partial: Partial<RunFilters>) =>
setFilters({ ...partial, startingAfter: undefined, endingBefore: undefined })
const rows = sortRuns(
applyClientFilters(runs.data?.items ?? [], filters),
filters.sort,
filters.dir,
)
if (runId) return <RunDetail runId={runId} onBack={() => setRunId(null)} />
return (
<>
<LiveToggle isLive={live} isFetching={runs.isFetching} onToggle={onToggleLive} />
<StatusSummary
counts={stats.data ?? {}}
onSelectStatus={(status) => filter({ statuses: [status] })}
/>
<FilterBar
filters={filters}
hasActiveFilters={hasActiveFilters}
workflowIds={['nightly-report', 'order-fulfillment']}
onFiltersChange={filter}
onClear={clearFilters}
/>
<RunsTable
runs={rows}
isLoading={runs.isLoading}
selectedRunId={runId}
onSelectRun={setRunId}
/>
<Pagination
hasPrev={!!runs.data?.hasPrev}
hasNext={!!runs.data?.hasMore}
isFetching={runs.isFetching}
onPrev={() =>
setFilters({ endingBefore: runs.data?.prevCursor ?? undefined, startingAfter: undefined })
}
onNext={() =>
setFilters({ startingAfter: runs.data?.nextCursor ?? undefined, endingBefore: undefined })
}
/>
</>
)
}
